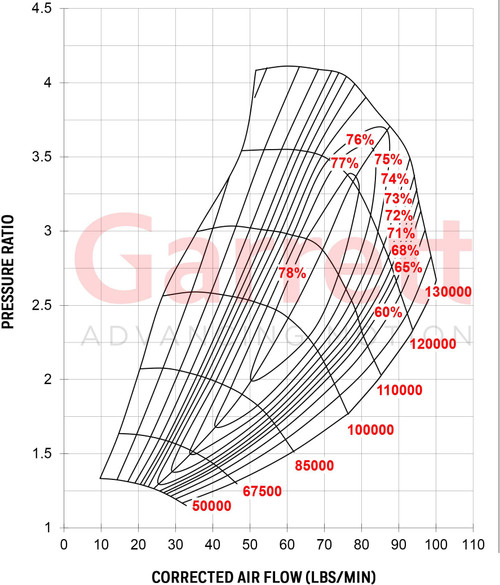

The G30-770 is an all new design over previous GTX Gen II turbochargers, making it the most powerful small frame unit Garrett offers.The reverse, or mirror style, rotation allows for unique installation requirements in single applications, or a perfect "mirror image" pair of turbochargers for twin turbo application. The 58x71mm point milled compressor group found in the G30-770 is capable of delivering 70+ #/min of airflow, or 770+ HP. The all new design incorporates Garrett's legendary ceramic ball bearing structure for quick response and durability, twin compressor and turbine side seal rings for improved oil sealing, compact footprint for tight installation, an all new 60x55mm 9 bladed turbine wheel, integrated speed sensor and boost reference ports on the compressor cover ans a wide range of turbine housing V-Band inlet/outlet design. If you need help choosing the right turbo for your application, please give us a call and we will be happy to help!
